Application:

Kurkure, Chips,Namkeen ,Seeds,Wafers,Dry Fruits ,kaju ,Badam ,Pishta ,Kismis,Whole Spice ,khajur ,Aloo Bhujia ,Poha Penuts ,Rice ,Rajma ,Chole ,Tea & Suger all products

Feature:

• Sealing: Center Seal Type.
• P.L.C. Controlled system.
• Pneumatic Technology used for efficient pouch sealing.
• Filling System: 10 Head Multi Weigher.
• Digital Temperature Controller (PID TYPE).
• Touch Screen Display for Parameter Setting.
• All contact parts are of Stainless Steel.
• All around stainless steel covering.
• Bulk & fine Feeding by mode of Vibrators.
• Compact and robust machine.
• Microprocessor based digital panel.
• Very simple operation and low maintenance

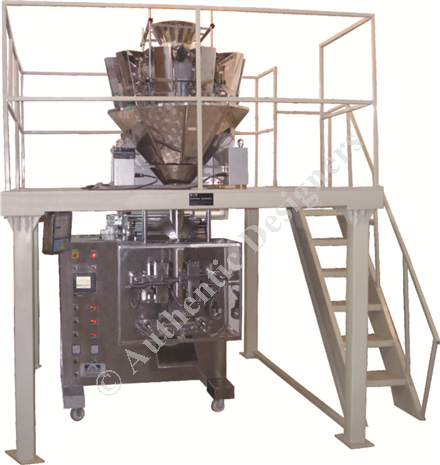

Multi Head Weigher Specification

• Max Weight: 1000 Grams (Per Single Dump).
• Measuring Method: Load Cell Based combination weighing
• Weighing Accuracy: ±0.5 – 5 Gram.(Depending on the grain size of various
• Variety of Products)
• Digitals Sensors enhance the speed, accuracy & anti jamming capability.
• Perfect combination of high speed & high accuracy.
• The opening and closing speed of Weigher happens can be adjust to be avoiding material
• Falling into pieces or being blocked.
• Stainless steel with IP65 water proof, Dust proof and erosion proof design keeps the
• Accessories hygienic.
• Step Motor drive with speed control.
• The function of data statistics an make records such as pack no pass rate average error
• of each pack etc.
• Each linear feeder amplitude can be auto / manual adjustable will ensure the product’s
• Easy flowing with high accuracy.
• Liquid crystal and touch screen with optional language makes it easy to operate.
• Speed: Up to 25 – 35 Packs Per Minutes. (Depending on the grain size of various Variety of Products)
• Filling heads: 10 Heads. Structure: Stainless Steel.
• Power: 1.0 Kw.
• Frame Protection: IP – 65.
• Preset Program: 50
• Display Screen: Color Display, 5.7” LCD with Digital Input Keypad.
• Power Supply: 220 V, 50 Hz.

     Optional

• Nitrogen fleshing systems
• Bucket Elevator
• Flap Conveyor
