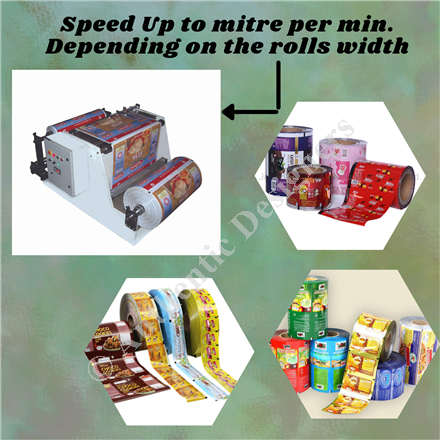

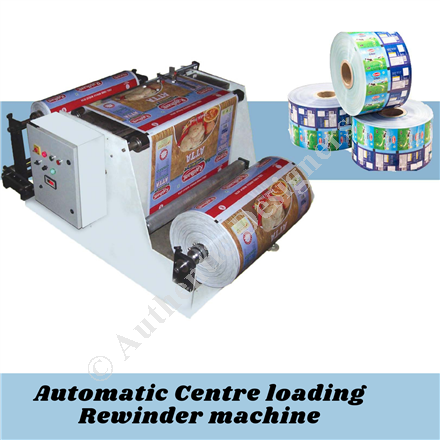

Automatic centre loading rewinder machine
Approx. Price: 375000
Rewinder Max Roll Width
:800 mm
Machine Model
Payment terms
:L/C (Letter of Credit),T/T (Bank Transfer)
Port of Dispatch
:New Delhi
Dispatch Time
:2-3 weeks
:Strong wooden Packing
Machine Power
:2kW, 3 Phase.
Rewinder Unwind reel dia (max)
:400 mm
Rewinder Rewind reel dia
:400 mm
Hydraulic Cylinder of stroke length
:100 mm
:100 mtr (Depending on the roll width)
:2 H.P. 3 phase Crompton Greaves Make
  • Application:

    Laminated pouch roll, LDPE pouch Roll, Label Roll etc


    • AC Variable Speed Vector Frequency Drive for constant linear speed
    • Digital speed display meter (which shows the speed of the Rewinder)

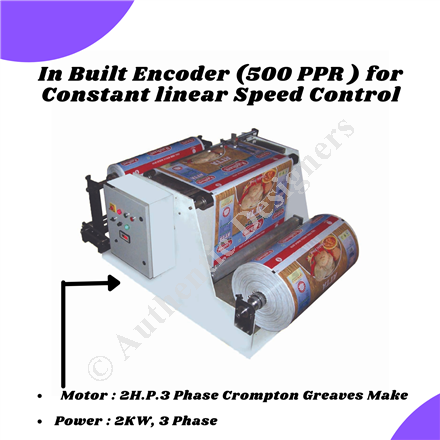

    • In built encoder for feedback of  linear speed to vactor drive.
    • With Hydro-Pneumatic edge guide system  web aligner make E+L driven by 0.75 HP motor with Pneumatic Sensor
    • Hydraulic Cylinder of stroke length 100 mm
    • All hydraulic oil will be supplied with the machine
    • With heavy duty Linear Motion
    •  Heavy duty linear slite for unwind shaft which makes it very smooth movement during edge guide operation.
    •  With Idle Balanced Aluminum rollers
    • Frictional brake system for controlling the rewinding tension of the roll
    • Heavy duty machine for Continuous running and vibration free operation
    • Stainless Steel plateform  (S.S.304) for Connect extra provision


    Extra Connect Provision:

    Automatic Tension Controler

    Magnatice Brake

    Pneumatic Air Shaft

    Inkjet Printer

    Label Applicator

    Hologram Applicator
